Detail produk:
|
| Model: | Sany sy312c-6w 2018 | Kapasitas: | 12 m3 |
|---|---|---|---|
| Ukuran: | 9945×2500×3980mm | Bobot: | 14850kg |
| Model mesin: | Weichai WP10.350E53 | Tenaga mesin: | 257 KW |
| Cahaya Tinggi: | 257KW Truk Pengaduk Beton Bekas,12M³ Truk Pengaduk Beton Bekas,Sany truk beton bekas 12M³ |
||

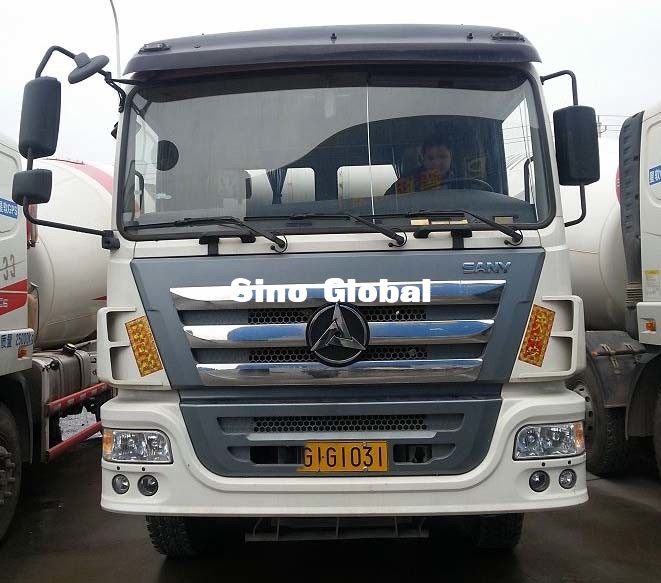

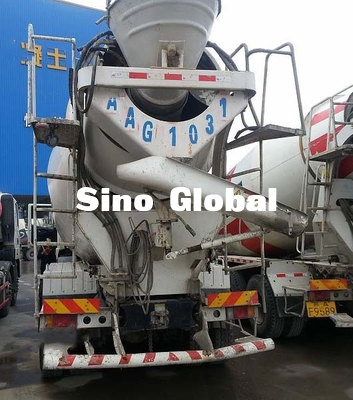

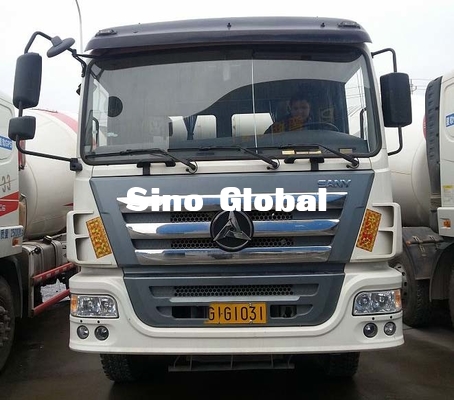

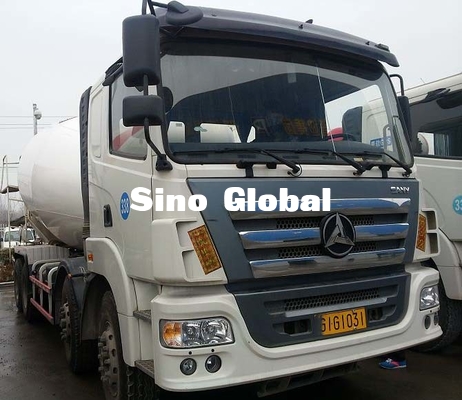

Model Mixer Truk Sany 12M³ Bekas 2018
Deskripsi Produk:
| Model Sany | SY312C-6W | |
| Parameter Keseluruhan | Arah Kemudi | Kiri |
| Berat trotoar (kg) | 14850 | |
| GVW (kg) | 43650 | |
| Dimensi (L×T×W)(mm) | 9945×2500×3980 | |
| Dasar Roda (mm) | 4090+1350 | |
| min.Ground Clearance (mm) | 240 | |
| min.Diameter Putar (m) | 20 | |
| Konsumsi Bahan Bakar (L/100km) | 45 | |
| Jarak Pengereman (V0 = 30km / jam) (m) | 10(Beban penuh);9(Beban kosong) | |
|
Casis |
Model mesin | Weichai WP10.350E53 |
| Perpindahan (L) | 9.726 | |
| Nilai Daya/Kecepatan Putaran (kW/rpm) | 257/1900 | |
| Maks.Kecepatan Torsi/Rev (Nm/rpm) | 1600/1200-1600 | |
| Emisi | Cina | |
| Taksi | Sany Cab CB318 | |
| Gearbox | Cepat 9JS150TA-B | |
| Gandar Depan (t) | 9 | |
| Menengah, Gandar Belakang (t) | 2 × 16 | |
| Ban | 12.00R20 | |
| Kapasitas Tangki Bahan Bakar (L) | 300 | |
|
Drum |
Kapasitas (m3) | 12 |
| Motor | Sany M2F090NCWV | |
| Kecepatan Makan (m3 / mnt) | 8 | |
| Kecepatan Debit (m3 / mnt) | 5 | |
| Tingkat Residu Debit | 0,5% | |
| Kemerosotan (mm) | 50 210 | |
| Kapasitas Tangki Air (L) | 400 | |
| Tekanan Air (MPa) | 0,35-0,38 | |
| Peredam | PMP PMB7.1 | |
| Pompa hidrolik | Sany P4VC090NHW | |
Kontak Person: Ms. Lily
Tel: +8613973151690
