Detail produk:
|
| Model: | Sany SY310C-8W | Berat (kg): | 13600 |
|---|---|---|---|
| Dimensi (L×T×W)(mm): | 9300×2500×3985 | Dasar roda: | 3720+1350 mm |
| Model mesin: | Weichai WP8.340E51 | Nilai Daya/Kecepatan Putaran (kW/rpm): | 250/2100 |
| Cahaya Tinggi: | 10M³ Truk Pengaduk Beton Bekas,Truk Pengaduk Beton Bekas Sany,Industri Konstruksi Truk pencampur bekas sany |
||

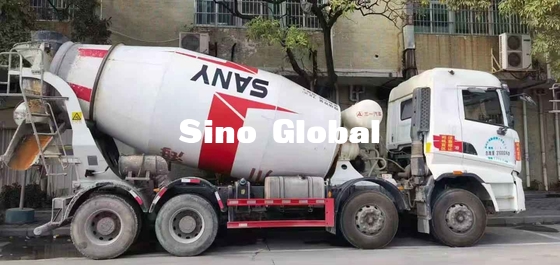

Model Campuran Truk Sany 10M³ Bekas 2020
| Model | SY310C-8W | |
| 整车 参数Parameter Keseluruhan | Arah Kemudi | Kiri |
| Berat trotoar (kg) | 13600 | |
| GVW (kg) | 37600 | |
| Dimensi (L×T×W)(mm) | 9300×2500×3985 | |
| Dasar Roda (mm) | 3720+1350 | |
| min.Ground Clearance (mm) | 240 | |
| min.Diameter Putar (m) | 18 | |
| Konsumsi Bahan Bakar (L/100km) | 42 | |
| Jarak Pengereman (V0 = 30km / jam) (m) | 10(Beban penuh);9(Beban kosong) | |
|
Casis |
Model mesin | Weichai WP8.340E51 |
| Perpindahan (L) | 7.8 | |
| Nilai Daya/Kecepatan Putaran (kW/rpm) | 250/2100 | |
| Maks.Kecepatan Torsi/Rev (Nm/rpm) | 1400/(1200-1600) | |
| Emisi | Cina | |
| Gearbox | Cepat 12JSD160TA | |
| Gandar Depan (t) | 9 | |
| Menengah, Gandar Belakang (t) | 2 × 16 | |
| Taksi |
Sany Cab CB318 |
|
| Ban | 11.00R20 | |
| Rem |
Sistem pengereman sirkuit ganda pneumatik dengan drum |
|
| Kapasitas Tangki Bahan Bakar (L) | 200 | |
|
Drum |
Kapasitas (m3) | 10 |
| Kecepatan Makan (m3 / mnt) | 8 | |
| Kecepatan Debit (m3 / mnt) | 5 | |
| Tingkat Residu Debit | 0,5% | |
| Kemerosotan (mm) | 50~210 | |
| Kapasitas Tangki Air (L) | 400 | |
| Tekanan Air (MPa) | 0,35~0,38 | |
| Peredam | PMP PMB6.5 | |
| Pompa hidrolik | Sany P4VC090NHW | |
| Motor | Sany M2F090NCWV | |
